References:  R Record keeping requirement | E An engineering/certification requirement | P A permit to work requirement | S A safe work method statement (SWMS) / written plan

Operational

Where used, façade panel launch tables must comply with AS 4100 –Steel Structures and AS/NZS 1554.1: – Structural Steel Welding Part 1: Welding of Steel Structures.

E Proof load test certificates must be supplied (by façade contractor) to MPX prior to use on site.

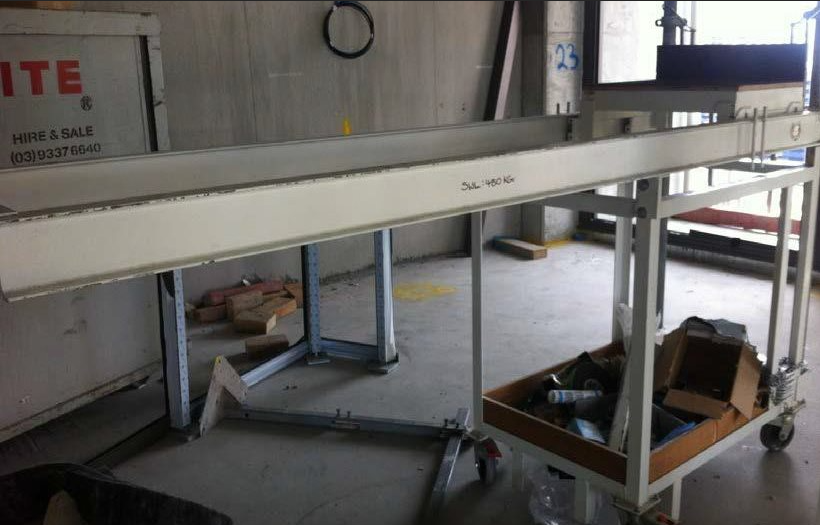

Façade panel launch tables must be fitted with the following:

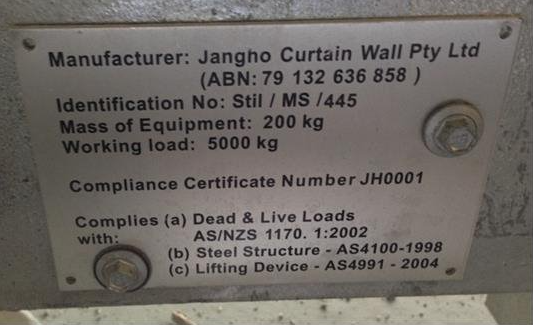

• A compliance plate indicating its maximum capacity.
• A warning sign (sticker / decal) must be fitted to the launch table alerting the operator to check that the props have been properly deployed prior to use
• The castors fitted must be of sufficient rated capacity to withstand loads imposed.
• Façade panel launching tables must be inspected prior to use (castors, pops etc)
